MASTER EXTRACTORS

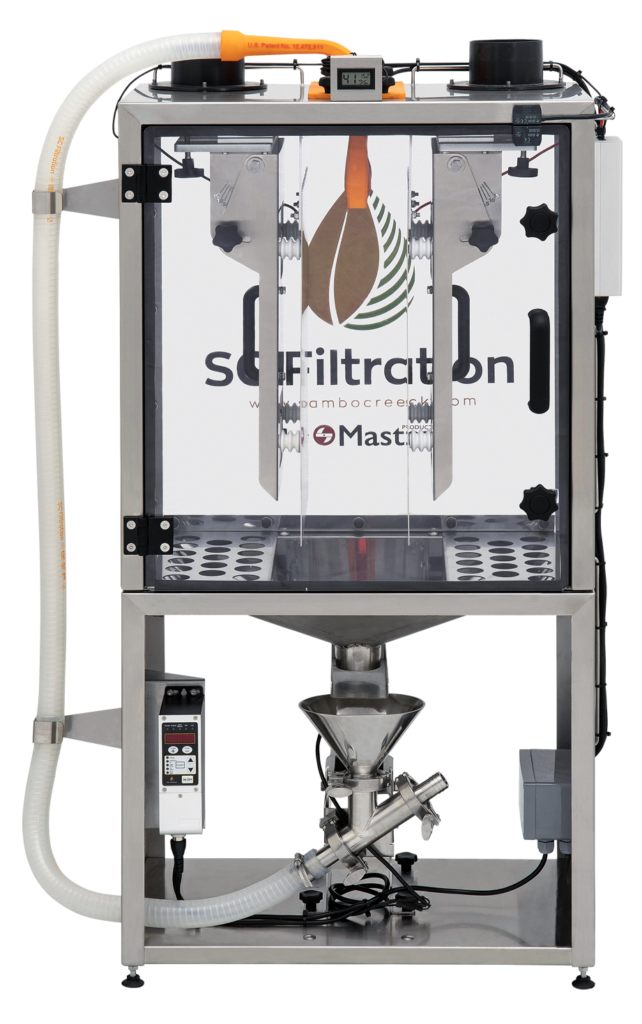

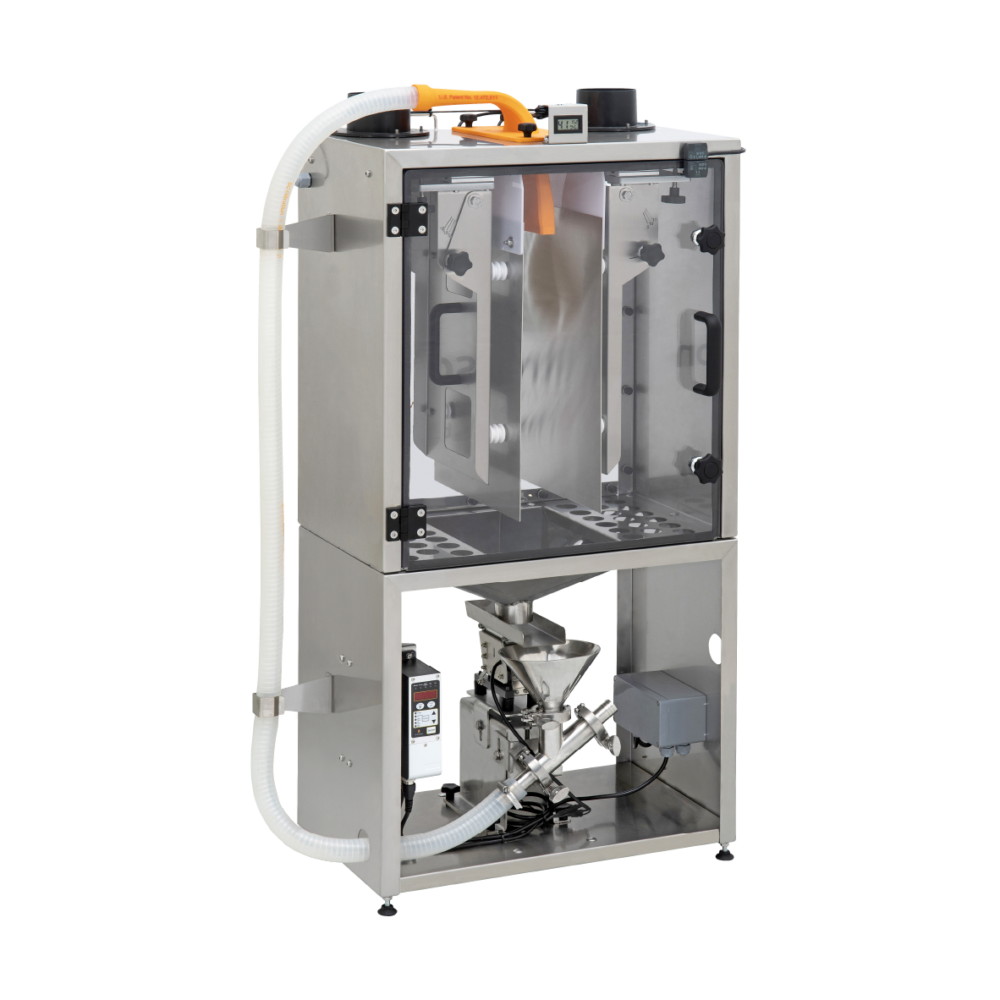

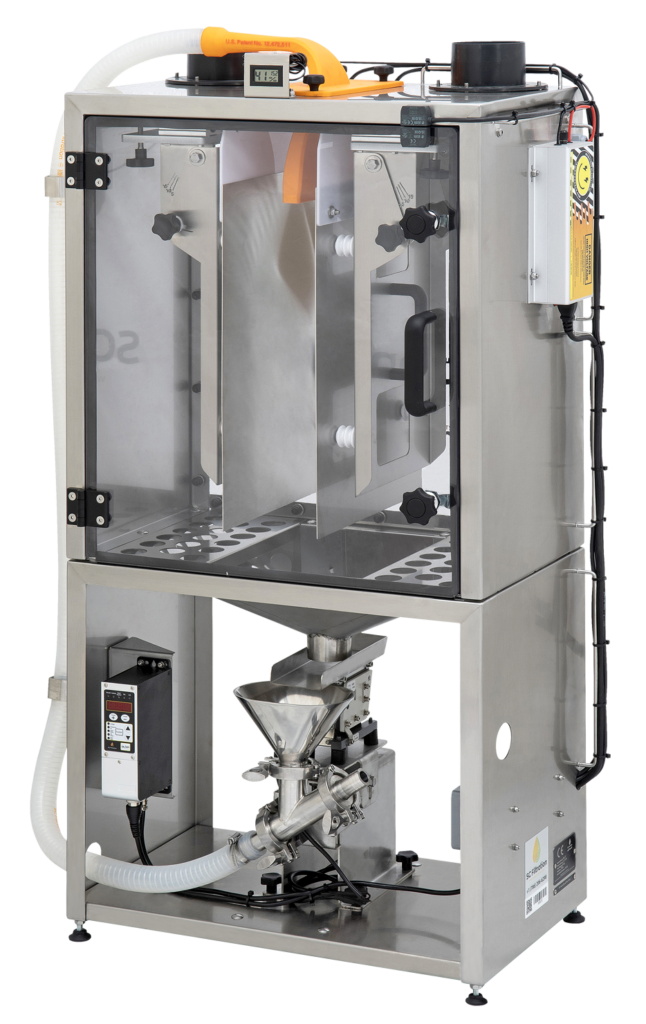

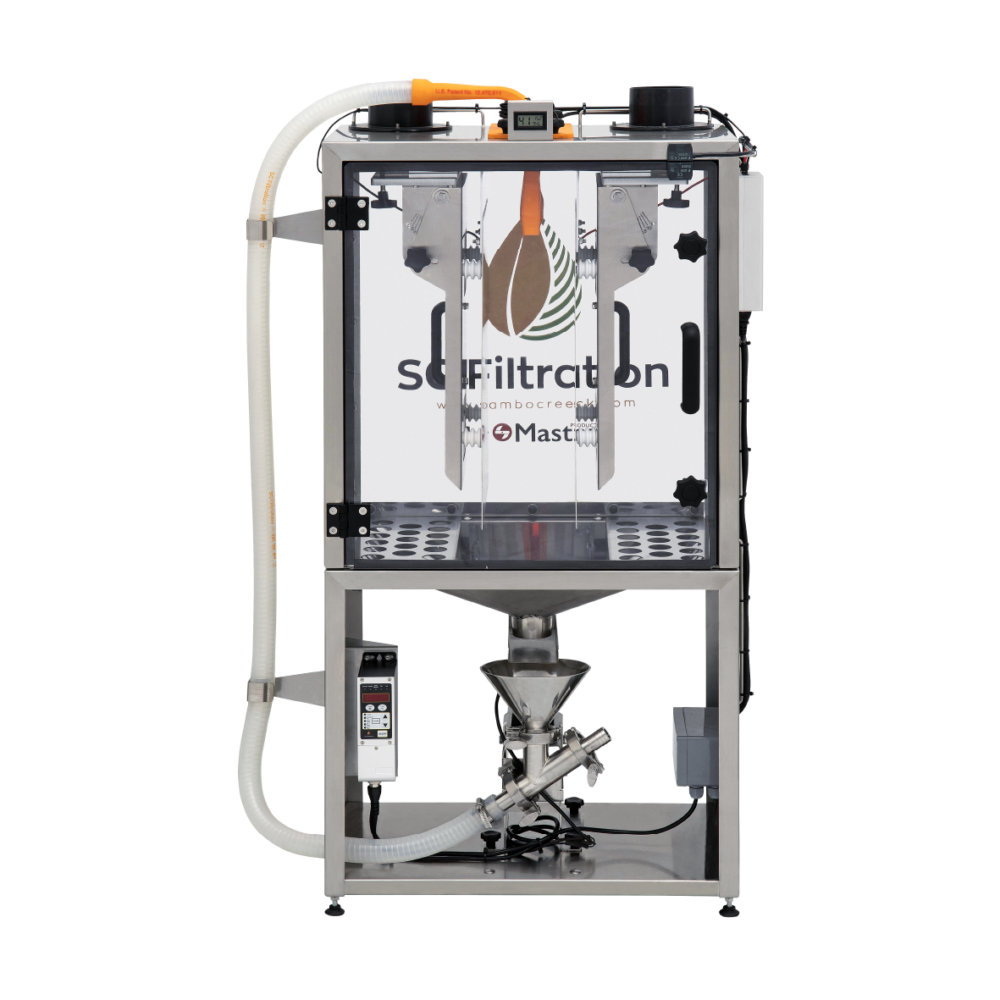

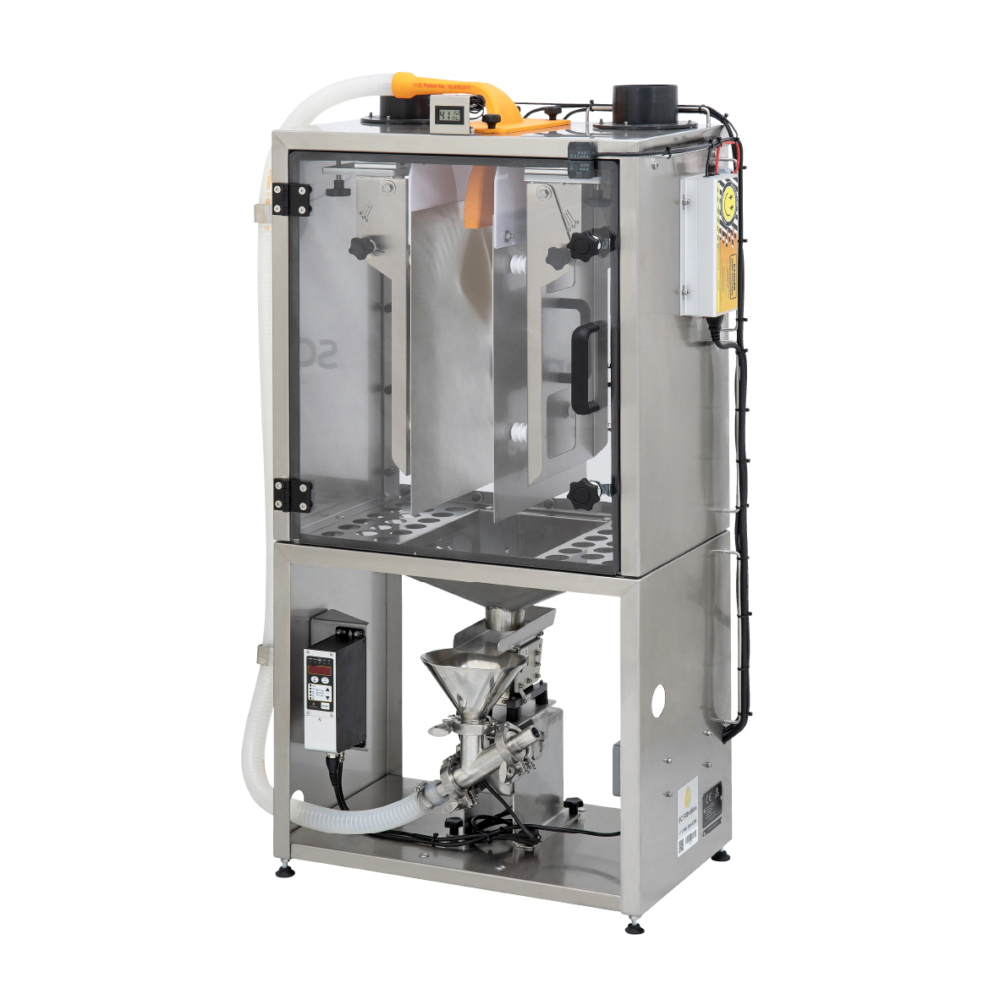

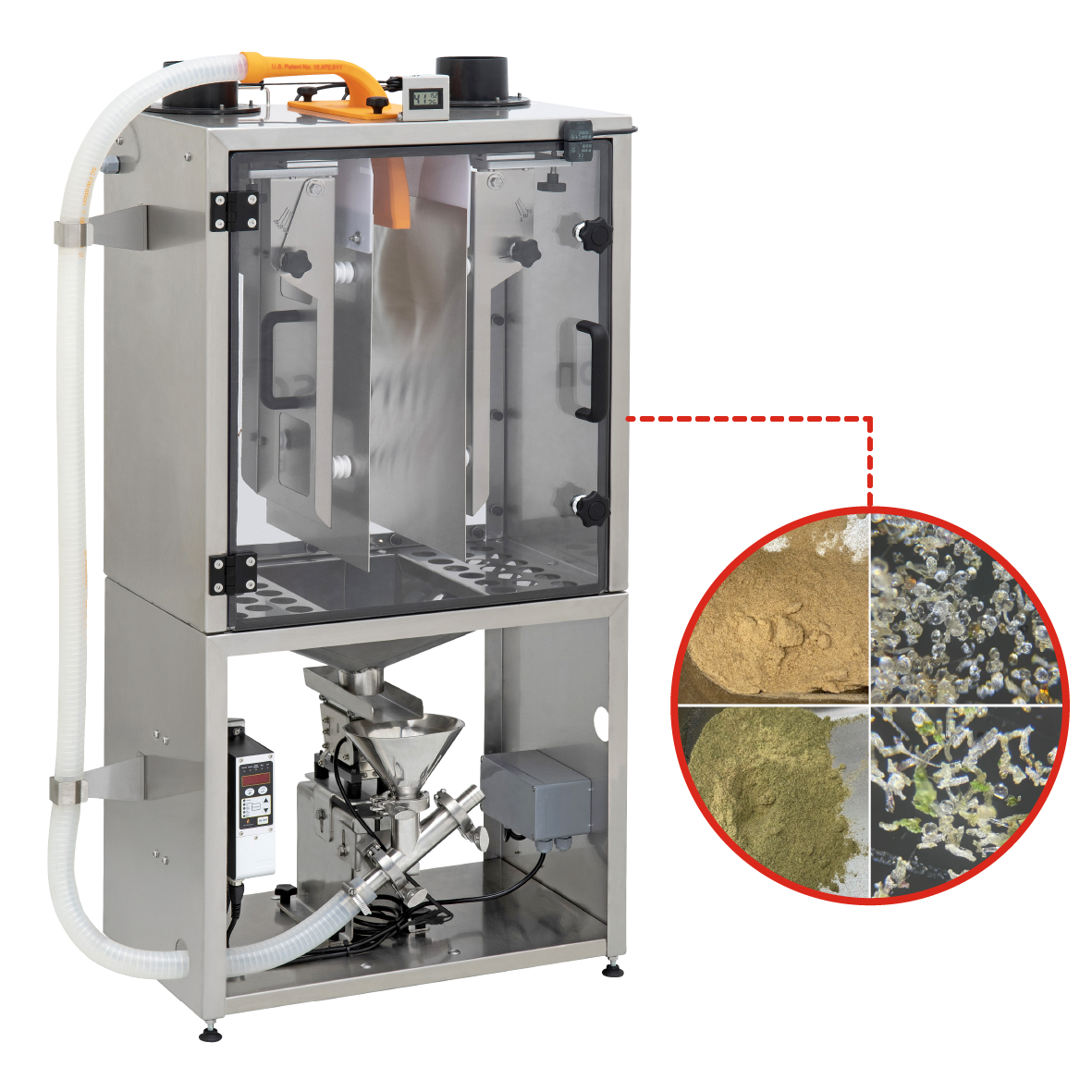

PLASMASTATIC PILOT
HIGH-PRECISION TRICHOME SEPARATOR IN A COMPACT SCALE
The PLASMASTATIC PILOT is a cutting-edge solution that uses advanced electrostatic technology to separate trichome heads from common kief contaminants such as pistils, stalks and other plant debris. Static electricity is used to isolate trichome heads from unwanted material, even distinguishing trichome heads from their stalks, ensuring the highest level of purity and quality.
With the patented technology of SC Filtration.
Compact design. Professional results.
UNMATCHED TRICHOME SEPARATION EFFICIENCY
Original unprocessed product
Contaminants and plant matter
Final product of maximum purity
PURIFY YOUR EXTRACTION

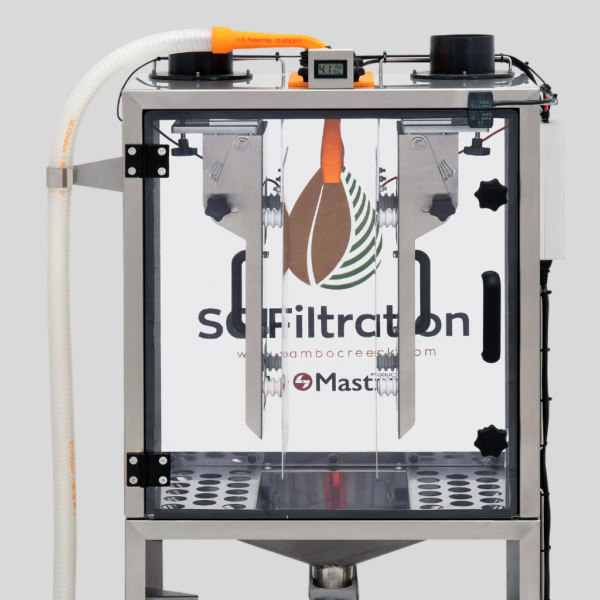

The Plasmastatic Pilot uses negative and positive electrode plates to separate trichome heads from plant material. No chemical solvents or additives are required. The spent biomass can be reprocessed via solvent extraction, ensuring zero waste and maximum value from your material.
This compact-scale system delivers the same high-precision separation as the larger Plasmastatic, but in a more compact footprint.
HIGH QUALITY CANNABIS RESIN

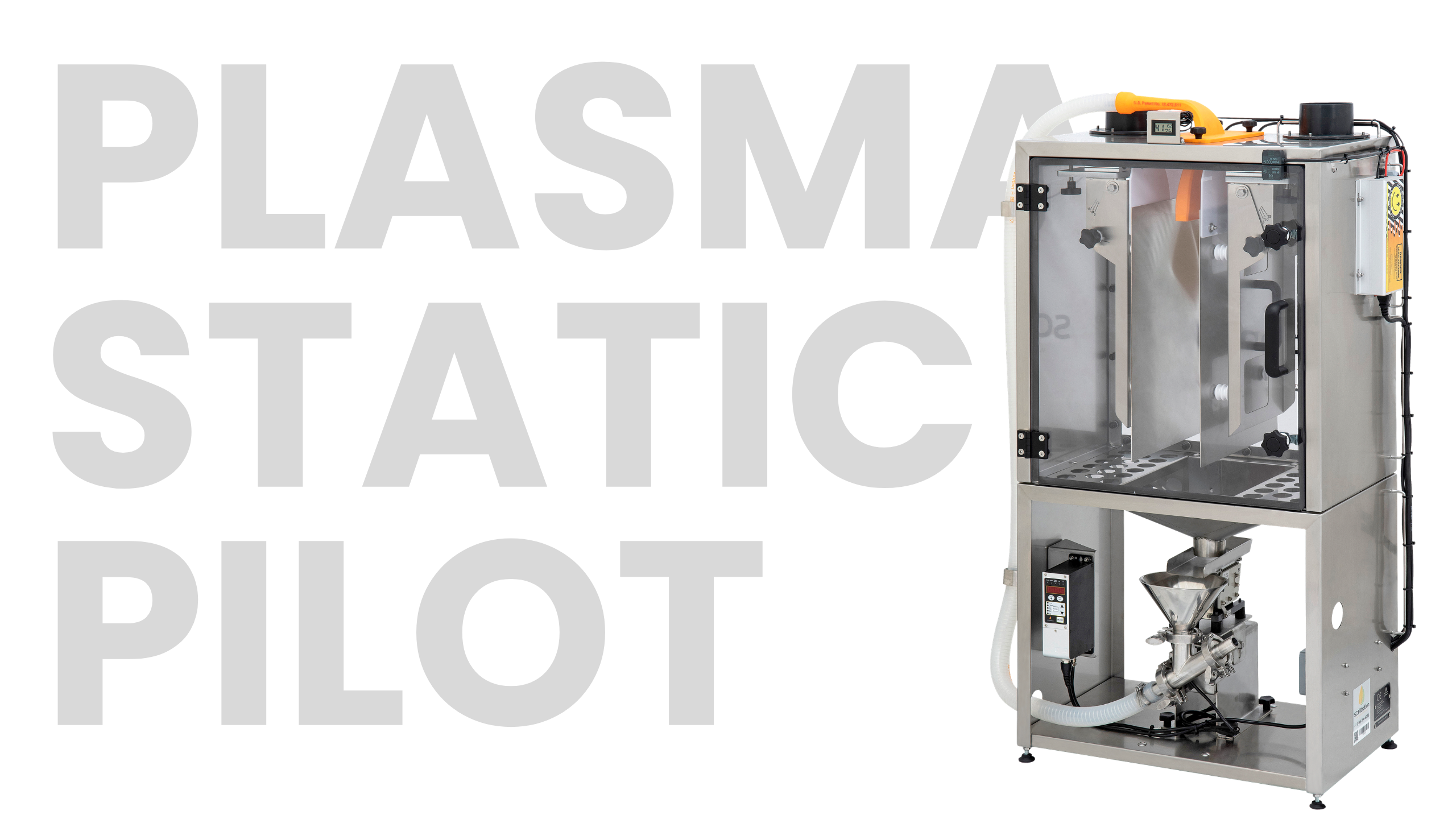

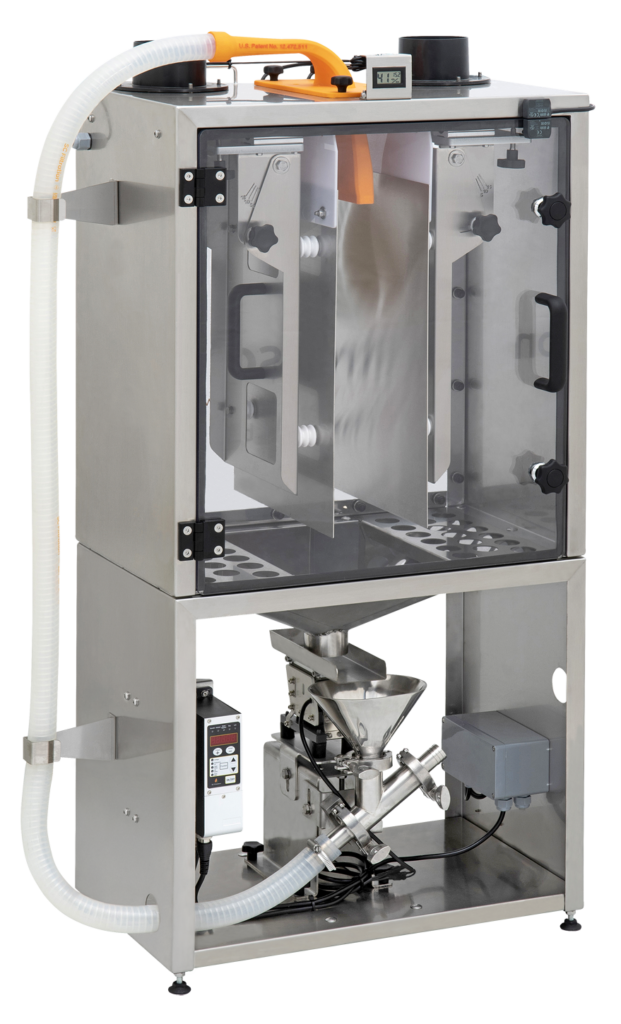

PLASMASTATIC PILOT
Main features
- No air compression needed.
- Made of stainless steel.
- Negative and positive electrode plates.
- Hopper with vibrating plates to prevent material from clumping.
- Complete safety system.
98% purity.
Up to 250 gr/h
Technical data
| Electrical connection | 500 W 2,2 A |
| Power consumption | 5 amp. |
| Material | Stainless steel |
| Decibels | 70 dB |
| Weight | 65 kg |
| Dimensions | 60 x 30 x 130 cm |
NO AIR COMPRESSION NEEDED
PLUG AND PURIFY
Unlike the other electrostatic systems, the Plasmastatic Pilot does not require an external air compressor. It uses an innovative Venturi effect system that generates the necessary airflow for separation, achieving maximum efficiency with minimal energy consumption.
Simply connect it to a standard electrical outlet and start separating. Less equipment. Less complexity. Same precision.
This makes it ideal for laboratories, small production facilities or operations where compressed air is not ready available or would add unnecessary cost and maintenance.
PREMIUM QUALITY
PILOT SCALE. PLASMASTATIC QUALITY.
The Plasmastatic Pilot delivers the same advanced electrostatic technology as the larger Plasmastatic models, but in a more compact and accessible format.
Its stainless-steel construction ensures durability and easy cleaning. The 70 dB noise level makes it suitable for indoor operation without disturbing your workspace.
VERSATILITY, EASY ASSEMBLY & MAINTENANCE
Keeping your equipment in optimal condition is a simple task. Its design allows for quick and hassle-free disassembly, making post-use cleaning easy.
All parts that come into contact with plant material are easy to remove and clean, reducing the risk of contamination. Additionally, its durable construction, made from high-quality materials with a solid warranty, ensures a long lifespan with minimal maintenance.
ADVANCED ELECTROSTATIC TRICHOME SEPARATION
MORE THAN A TECHNICAL SERVICE
WE ARE YOUR TEAM!
At Master Products we guide you through the entire process of purchasing, installing and setting up your equipment.
If you have any doubt about what you have read or you have not found the information you need, please contact us, we will be pleased to solve it!
